Introduction: Understanding the Crankset

A bicycle crankset is the heart of your bike's drivetrain system, transforming your leg power into forward motion. This critical component connects the pedals to the drivetrain, allowing riders to convert muscular energy into mechanical force that propels the bicycle forward. Often referred to as a "chainset" or simply "cranks," the crankset serves as the primary power transfer mechanism on all pedal-powered bicycles.

The crankset functions as a simple lever system, multiplying the force from your legs to rotate the chain, which then transfers this energy to the rear wheel. Without a properly functioning crankset, even the most expensive bicycle would be rendered useless. This fundamental component plays a crucial role in determining a bicycle's performance characteristics, including efficiency, weight, durability, and shifting quality.

Understanding Bicycle Crankset Types: A Comprehensive Guide



Basic Components of a Crankset

A complete crankset consists of several key components that work together as an integrated system:

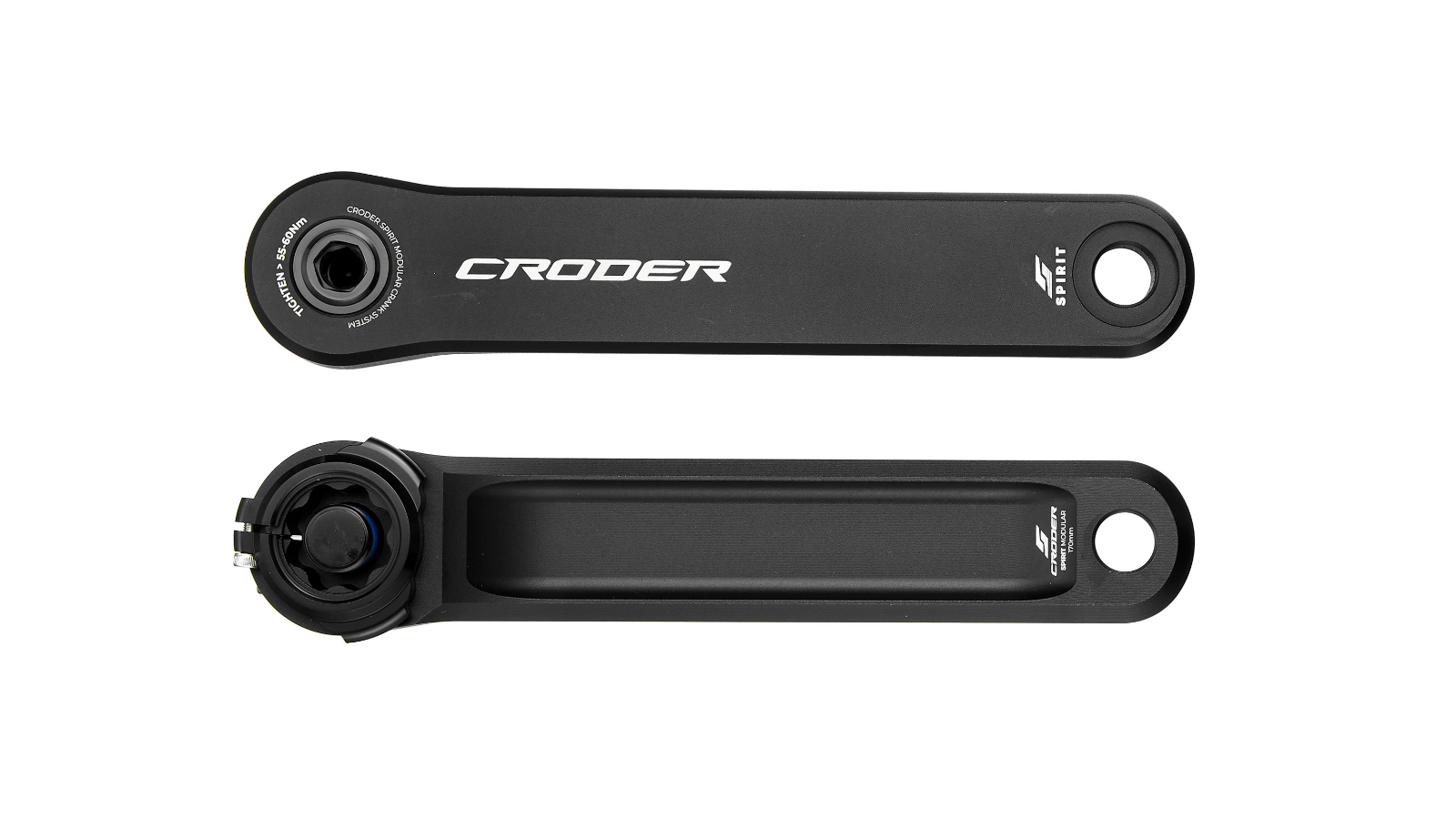

Crank Arms: These are the long lever arms that extend from the bike's bottom bracket area to the pedals. The crank arm length (typically between 165mm and 175mm) affects leverage, pedaling efficiency, and ground clearance. Right-side (drive-side) crank arms usually incorporate mounting points for chainrings, while left-side (non-drive-side) crank arms mirror their counterparts without chainring attachments.

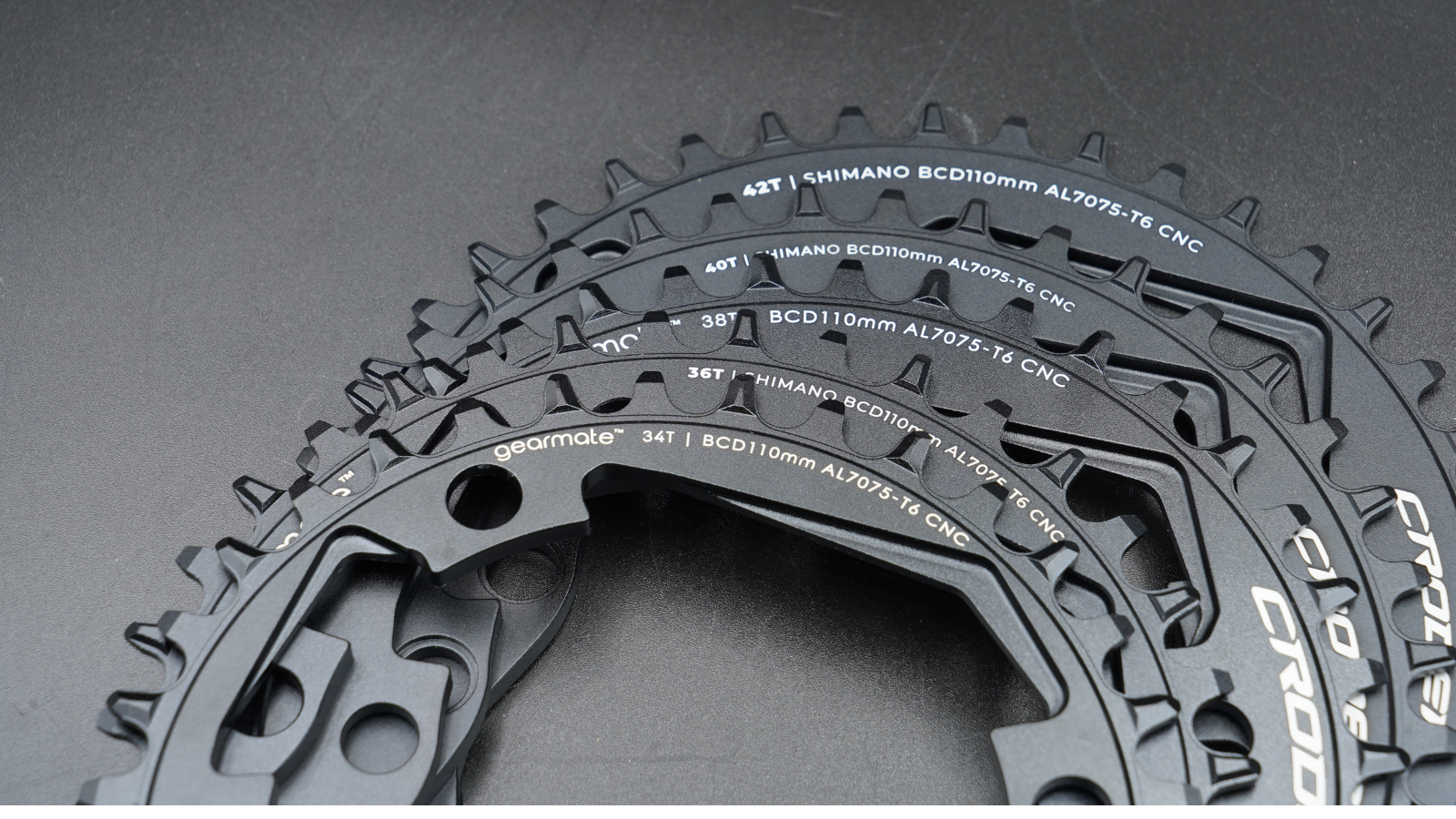

Chainrings: These toothed circular plates attach to the drive-side crank arm and engage with the chain. Chainrings vary in size (measured by the number of teeth), with larger rings providing harder gearing for speed and smaller rings offering easier gearing for climbing. Modern cranksets may feature one, two, or three chainrings depending on the intended riding discipline.

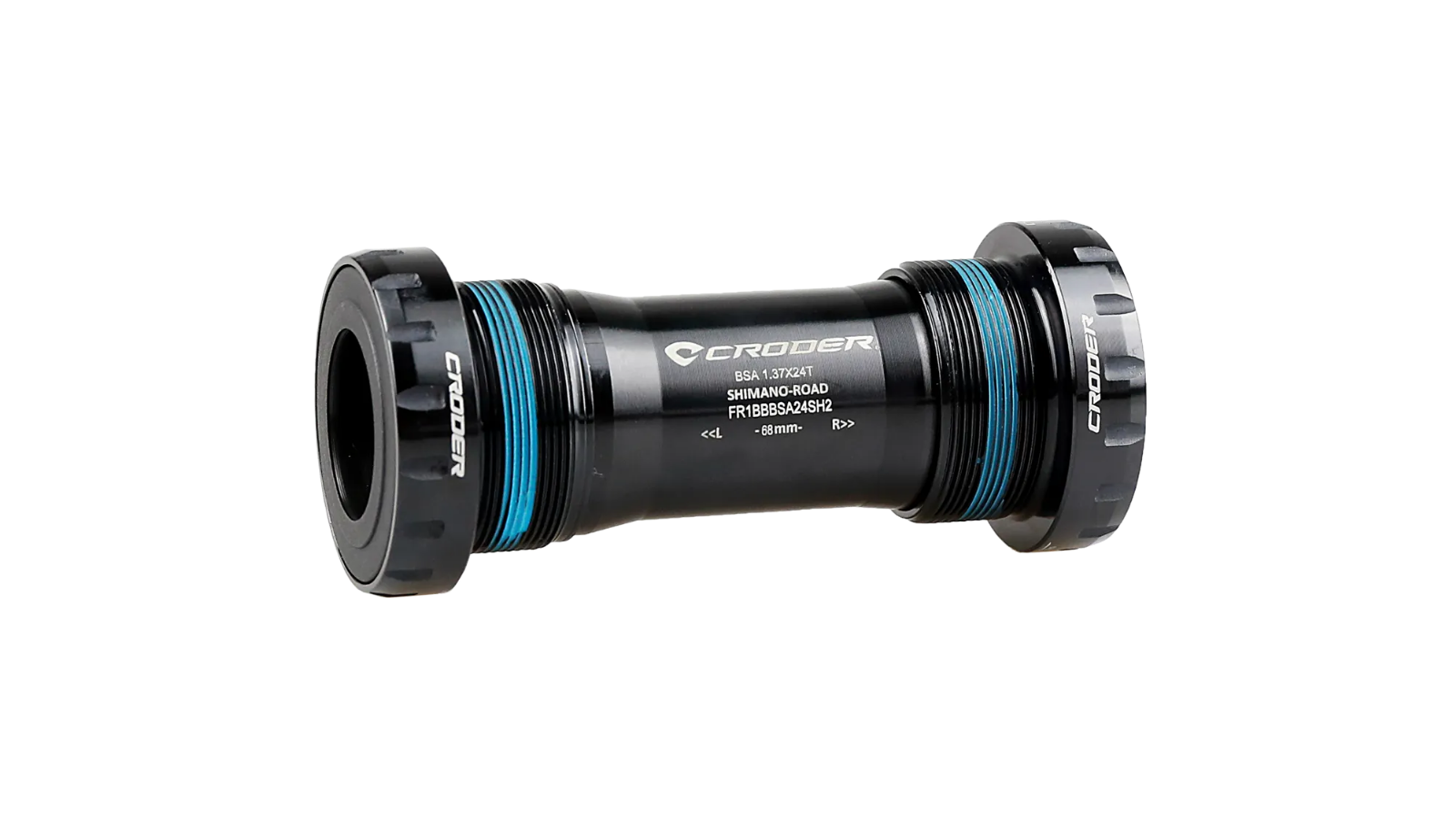

Spindle/Axle: This cylindrical component connects the two crank arms through the bicycle's bottom bracket. The spindle rotates within the bottom bracket bearings, allowing smooth rotation of the entire crankset assembly. In modern designs, the spindle may be integrated with one of the crank arms or exist as a separate component.

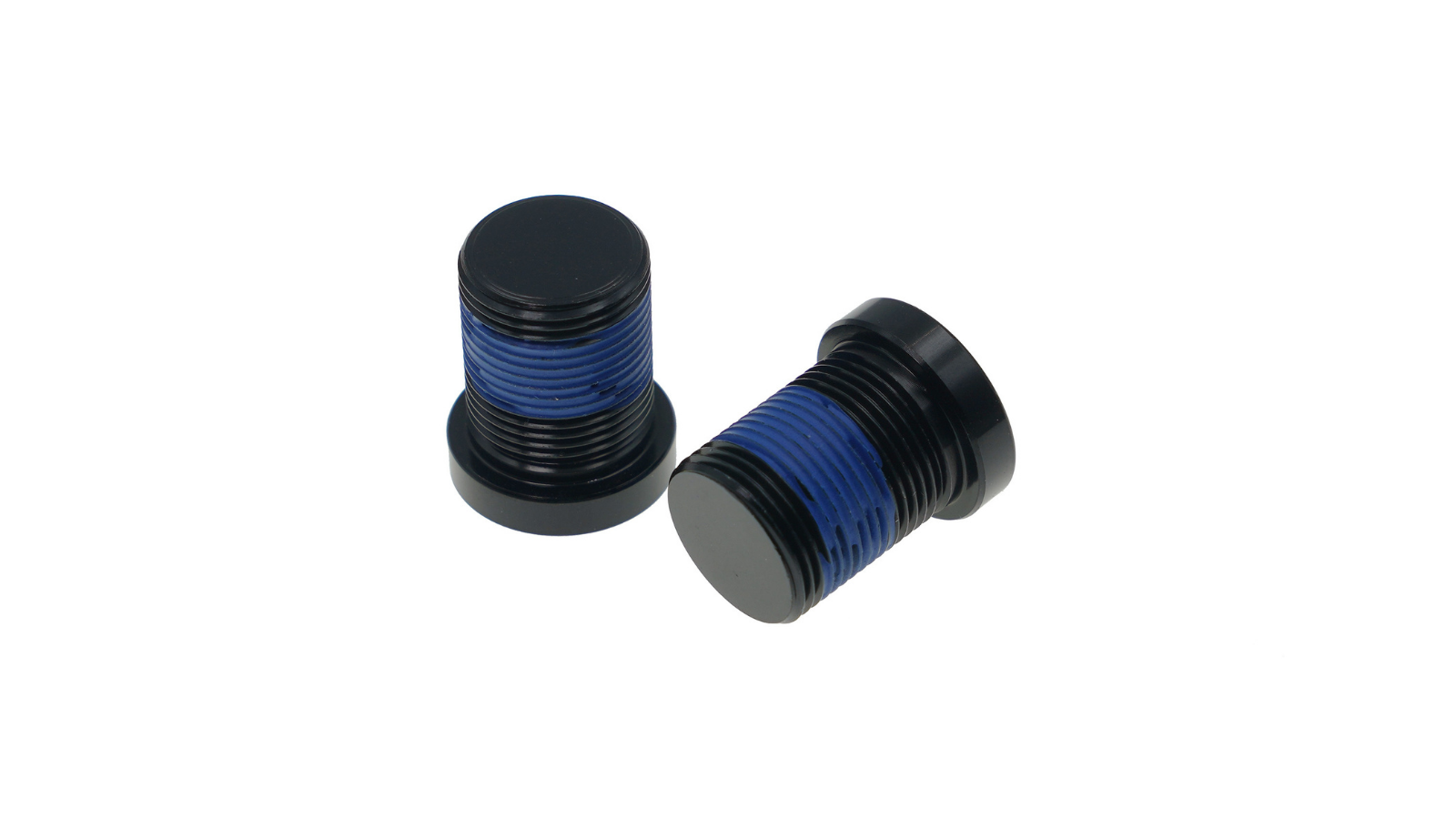

Mounting Hardware: Various bolts, nuts, and other fasteners secure the crankset components together and to the bicycle frame. These include chainring bolts, crank arm fixing bolts, and preload adjusters depending on the specific crankset design.

The integration of these components determines not only the performance characteristics of the crankset but also its compatibility with other bicycle components, particularly the frame's bottom bracket and the chain/cassette combination.

Find Your Perfect Crank Length for a pleasant Ride! 🚴‍♂️



Crankset Construction Types

The way a crankset is constructed significantly impacts its performance, durability, weight, and cost. Modern bicycles feature three main construction types, each with distinct characteristics and applications.

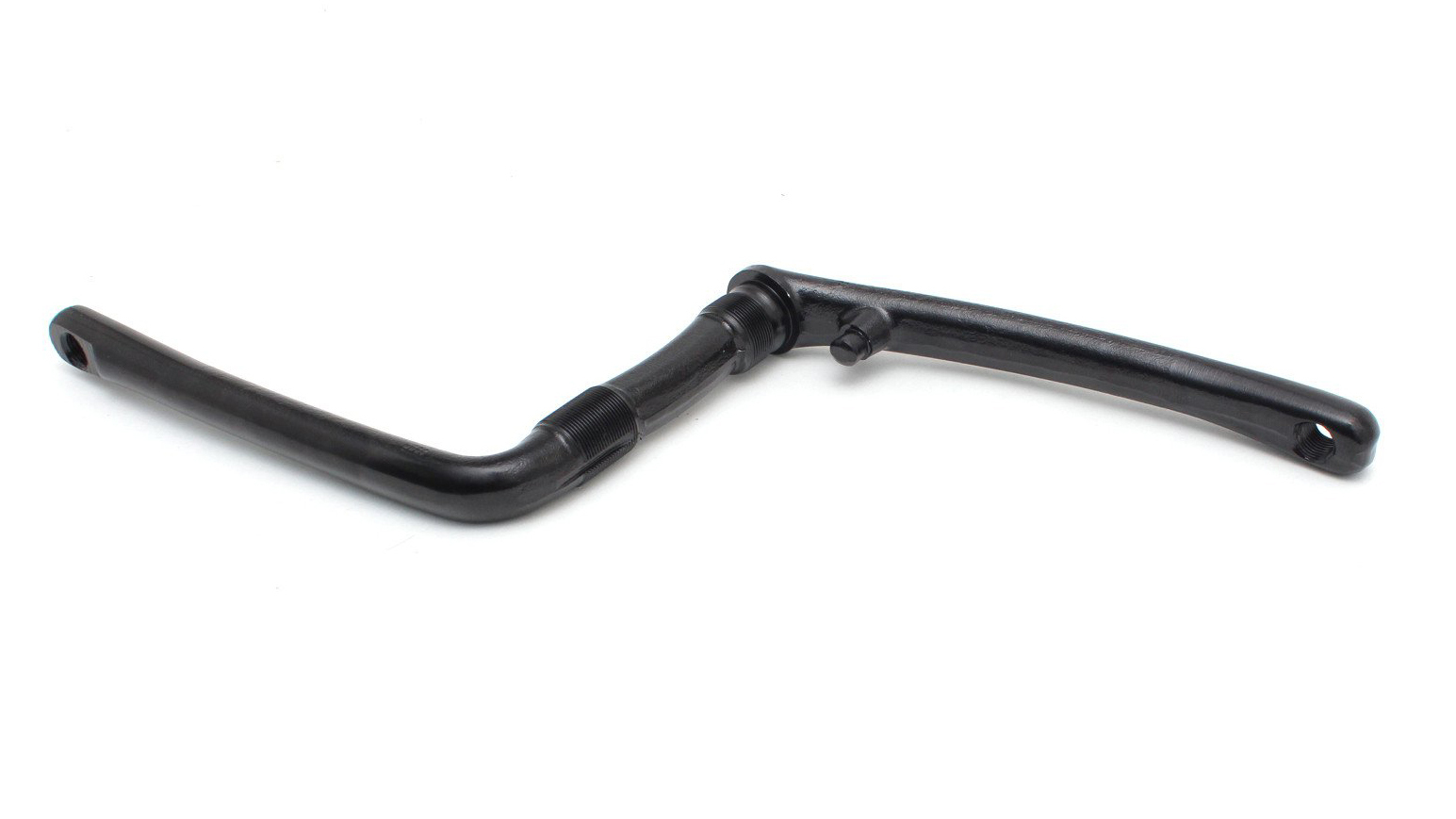

One-Piece Cranksets

One-piece cranksets represent the most fundamental design in bicycle drivetrains. As the name suggests, these cranksets are forged from a single piece of steel, forming both the left and right crank arms as one continuous unit that passes through the bottom bracket.

These simple cranksets typically use cup-and-cone bearings in the bottom bracket, creating a straightforward mechanical system with excellent durability and impact resistance. Their simplicity makes them ideal for applications where reliability matters more than performance, such as children's bikes, BMX bikes, and some utility bicycles.

However, one-piece cranksets have significant limitations, including heavier weight, limited upgrade options, less efficient power transfer, and restricted compatibility with modern bottom bracket designs.

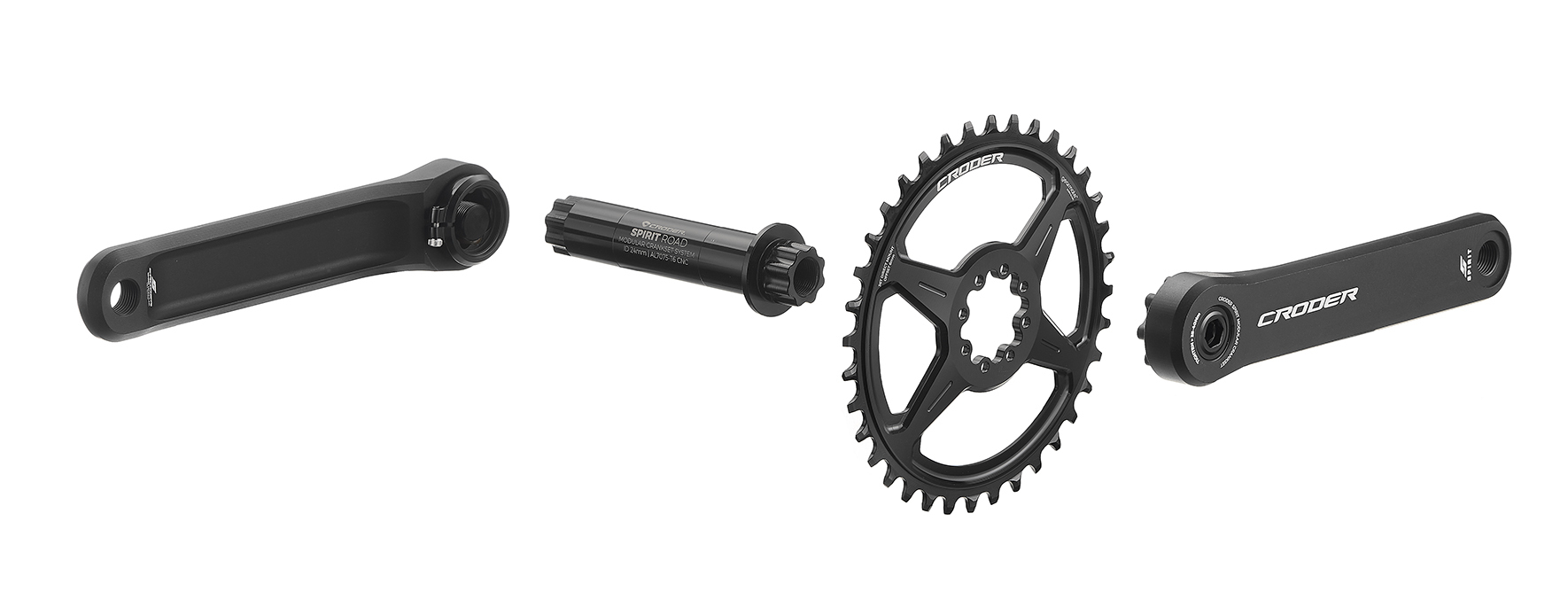

Three-Piece Cranksets

Three-piece cranksets marked a significant evolution in bicycle drivetrain technology. By separating the components, manufacturers gained flexibility in materials, geometry, and performance characteristics. A standard three-piece crankset consists of three distinct components:

  • Left crank arm (non-drive side)
  • Right crank arm with chainring mounting (drive side)
  • Separate spindle/axle that connects both arms

These components connect through various interface types, with square taper being the oldest and still common standard. Other systems include splined interfaces that offer improved torque transfer.

Three-piece cranksets offer better durability through improved materials and construction, enhanced power transfer through stiffer connections, and a modular design that makes servicing and upgrading easier. They remain popular across many cycling disciplines due to their balanced approach to performance and practicality.

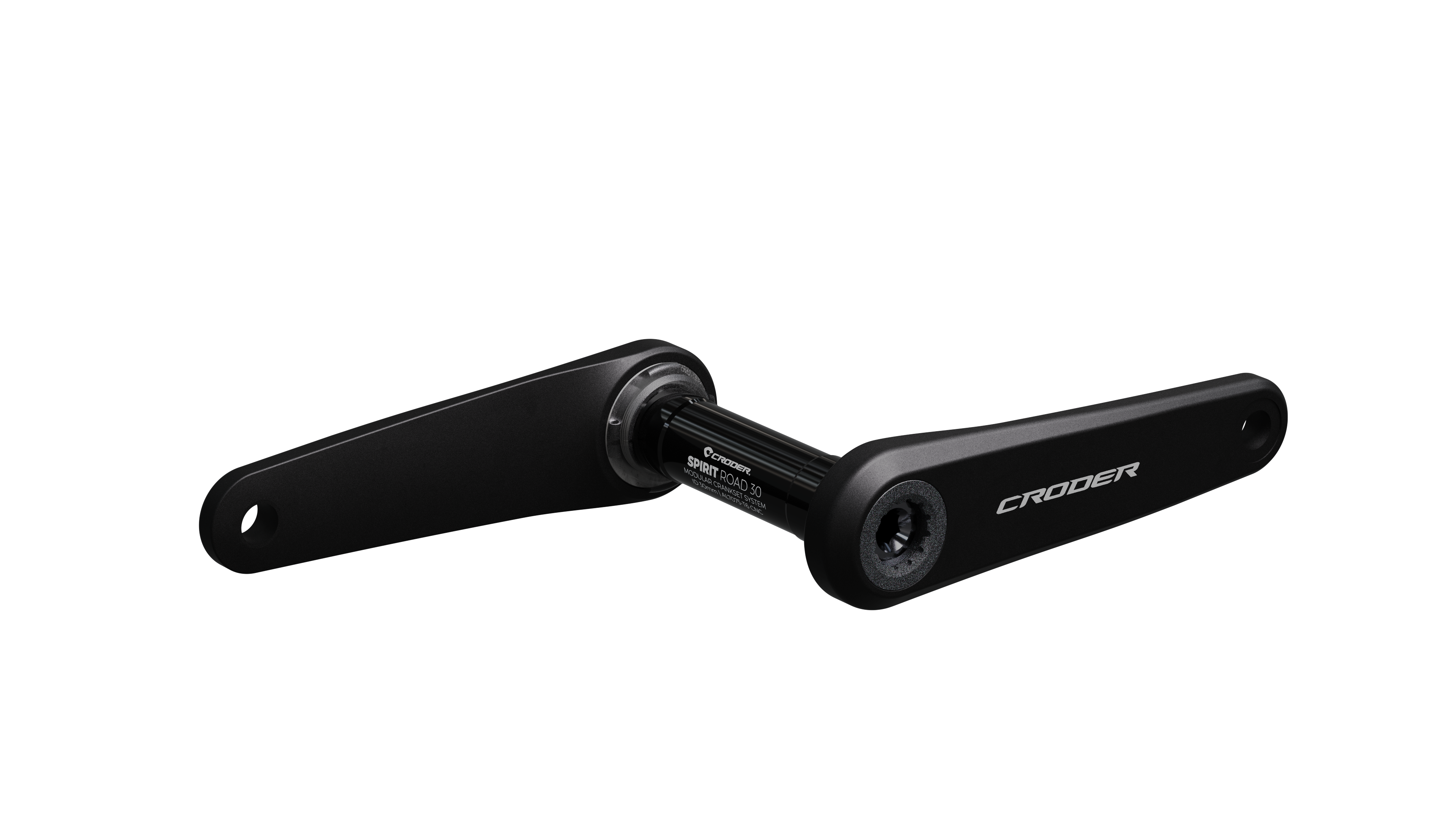

Two-Piece Integrated Systems

Modern two-piece integrated cranksets represent the current pinnacle of crankset design. These systems integrate the drive-side crank arm and spindle into a single unit, with the non-drive side arm attaching separately.

Key design features include:

  • Integrated spindle permanently attached to drive-side arm
  • External bearings positioned outside the frame
  • Hollow construction techniques to reduce weight
  • Oversized spindle diameters for increased stiffness
  • Proprietary attachment methods for the non-drive arm

These sophisticated designs offer significantly lighter weight through material optimization, dramatically increased stiffness during power transmission, and superior power transfer efficiency. They have become the standard for performance-oriented bicycles across all disciplines, from road racing to mountain biking.

CRODER Chainring Compatibility: "Sram Flattop" and "Shimano Chains" Supported



Chainring Configurations

The number and arrangement of chainrings on a crankset significantly influence a bicycle's performance characteristics, gearing range, and intended use. Modern bicycles feature three primary chainring configurations, each designed to serve specific riding needs and disciplines.

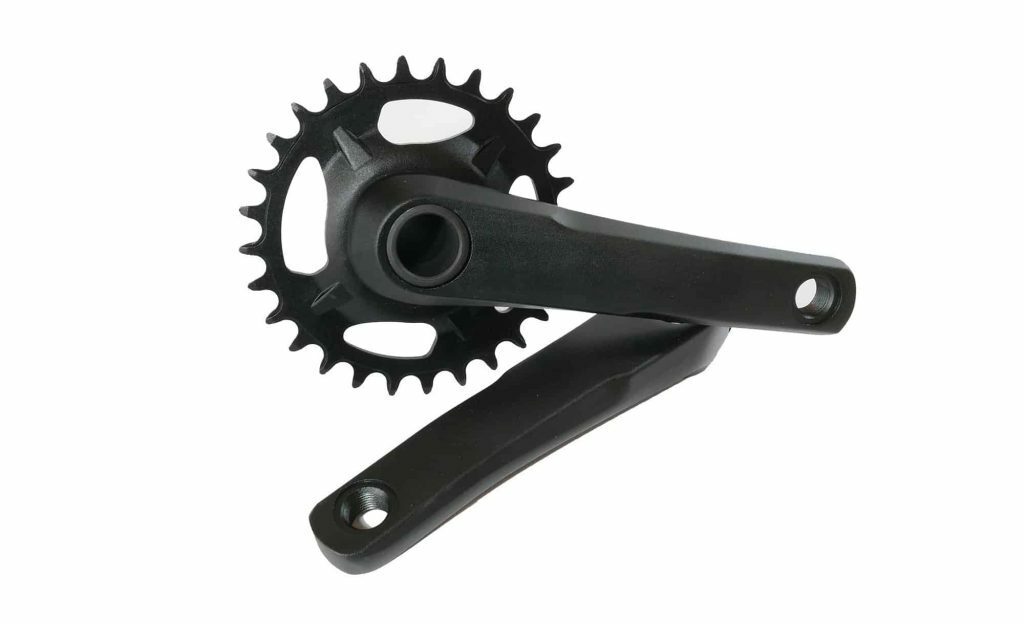

1. Single Chainring (1x) Systems

Single ring cranksets, commonly abbreviated as "1x" systems, represent the modern approach to drivetrain simplicity and reliability. These cranksets feature just one chainring at the front, eliminating the front derailleur entirely. This design has revolutionized mountain biking and is increasingly popular in gravel and even some road cycling applications.

Key advantages include:

  • Mechanical simplicity with fewer failure points
  • Clean appearance with improved aerodynamics
  • Superior chain retention through specialized tooth profiles
  • Reduced weight and maintenance requirements

Modern 1x systems incorporate innovative tooth profiles with alternating narrow and wide teeth that significantly improve chain retention on rough terrain. This technology, combined with clutch-equipped rear derailleurs, virtually eliminates chain drops even in the most challenging conditions.

The main limitation of 1x systems is the reduced overall gear range compared to multi-ring setups, though modern wide-range cassettes (with up to 12 speeds and ratios exceeding 500%) have largely mitigated this concern.



2. Double Chainring (2x) Systems

Double chainring cranksets remain the standard configuration for road cycling and provide an excellent balance of gear range, shifting precision, and weight. These systems offer several common setups tailored to different riding styles and terrain preferences:

  • "Standard" double (53/39t): Preferred by racers for maximum speed
  • Semi-compact or "mid-compact" (52/36t): Versatile compromise between speed and climbing
  • Compact (50/34t): Popular among recreational riders for improved climbing
  • Super compact (48/32t, 46/30t): Optimized for steep climbing and endurance riding

Double chainring systems excel in road cycling applications where efficient cadence management and optimal power output are critical. The relatively small gaps between gears in a 2x system allow riders to maintain an ideal cadence across varying conditions while providing an expansive overall gear range.



Specialized Functional Crankset Types

Beyond the basic construction types and chainring configurations, modern cranksets can also be categorized by their specialized functions and design philosophies. These functional classifications represent cutting-edge approaches to solving specific cycling challenges or enhancing particular performance aspects.



Want to Find the Perfect Chainring Configuration for Your Riding Style?

Understanding the diverse landscape of bicycle cranksets is essential for making informed equipment choices that align with your riding objectives and performance needs. As we've explored throughout this guide, cranksets have evolved from simple one-piece designs to sophisticated integrated systems that combine advanced materials, precision engineering, and cutting-edge technology.

The fundamental construction types—one-piece, three-piece, and two-piece integrated systems—each offer distinct advantages for different applications and price points. Similarly, chainring configurations, whether single (1x), double (2x), or triple (3x), provide tailored solutions for specific riding disciplines and terrain challenges. These foundational choices form the basis of a drivetrain system that significantly impacts your cycling experience.
