Understanding Bicycle Crankset Types: A Comprehensive Guide
2025-02-21
Quick Answer
A bicycle crankset can come in several configurations, from simple one-piece designs to sophisticated integrated systems.
The main types include one-piece, two-piece, three-piece, and various specialized designs for different riding purposes. As the heart of your bicycle's drivetrain, the crankset transforms your leg power into forward motion through a combination of crank arms, chainrings, and spindles.
Basic Construction Types

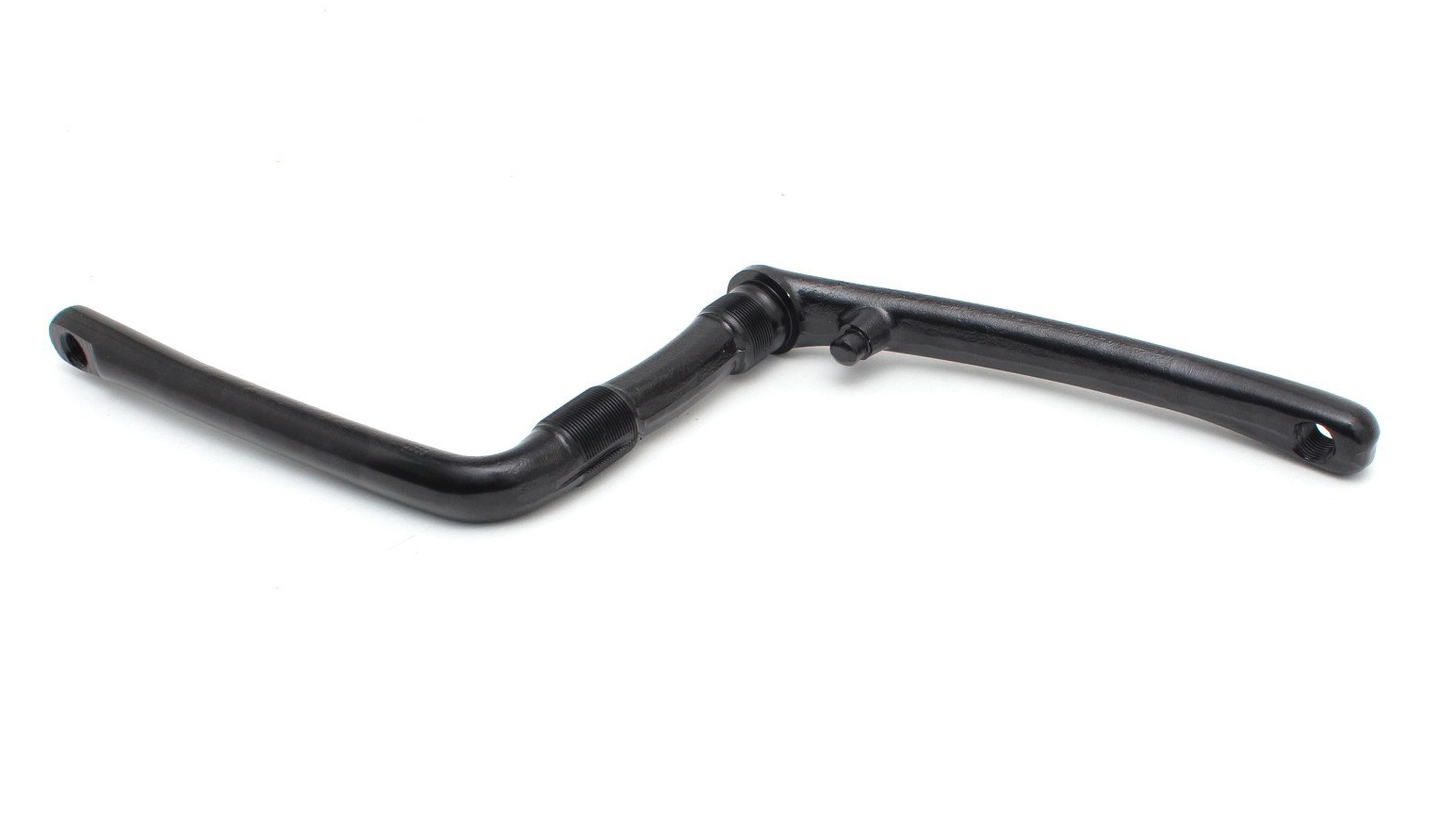

1. One-Piece Cranksets
One-piece cranksets represent the most fundamental design in bicycle drivetrains. Forged from a single piece of steel, these cranksets form both the left and right crank arms as one continuous unit. The design dates back to early bicycle manufacturing and continues to serve specific purposes today.
These simple cranksets are manufactured from a single steel piece forming both crank arms, connected through a simple spindle that passes through the bottom bracket. They typically utilize cup-and-cone bearings in the bottom bracket, creating a straightforward mechanical system that has stood the test of time.
One-piece cranksets are commonly found on entry-level bicycles, children's bikes, BMX bikes, and some urban cruisers. Their prevalence in these categories stems from their practical advantages in these specific applications. The simplicity of the design requires minimal engineering, resulting in lower manufacturing costs that make these cranksets highly affordable for budget-conscious consumers.
The straightforward construction also leads to easy maintenance with basic tools, allowing even novice mechanics to service these components. Under normal riding conditions, one-piece cranksets offer exceptional durability and resistance to bending from impacts, making them suitable for applications where reliability trumps performance.
However, these traditional cranksets do come with notable disadvantages. They tend to be considerably heavier than modern alternatives, adding unnecessary weight to the bicycle. Since they're constructed as a single unit, upgrade options are limited, as the entire crankset must be replaced rather than individual components. The inherent flexibility in the design results in less efficient power transfer compared to more advanced systems. Additionally, one-piece cranksets are restricted to specific bottom bracket designs and offer limited chainring options, constraining their versatility.
One-Piece Cranksets: Advantages, Disadvantages
Advantages:
Simple Design: Forged from a single piece of steel, making it straightforward and easy to manufacture.
Low Cost: Affordable to produce and maintain, ideal for budget-conscious consumers.
Easy Maintenance: Can be serviced with basic tools, suitable for beginners.
High Durability: Offers excellent durability and resistance to impacts under normal riding conditions.
Wide Applicability: Commonly used in entry-level bikes, children's bikes, BMX bikes, and urban cruisers.
Disadvantages:
Heavy Weight: Heavier than modern alternatives, adding unnecessary weight to the bike.
Limited Upgrade Options: Requires replacing the entire crankset for upgrades, as individual components cannot be swapped.
Less Efficient Power Transfer: The design's inherent flexibility results in lower power transfer efficiency compared to advanced systems.
Limited Compatibility: Restricted to specific bottom bracket designs and offers fewer chainring options, reducing versatility.
2. Three-Piece Cranksets
Three-piece cranksets represent a significant evolution in bicycle drivetrain technology. By separating the components, manufacturers gained flexibility in materials, geometry, and performance characteristics. These systems remain popular across various cycling disciplines due to their balanced approach to performance and practicality.
A standard three-piece crankset consists of distinct components: the left crank arm (non-drive side), the right crank arm with chainring mounting (drive side), and a separate spindle/axle that connects both arms. This modular approach allows for greater customization and serviceability compared to one-piece designs.
The connection between these components relies on various interface types. The square taper remains the oldest and still common standard, featuring a square-ended spindle that fits into a matching socket in each crank arm. Other systems include splined interfaces that offer improved torque transfer through multiple contact points between the spindle and crank arms.
The benefits of three-piece cranksets are substantial compared to their one-piece predecessors. They deliver significantly improved durability through better materials and construction techniques. Power transfer is enhanced through stiffer connections between components, resulting in more efficient cycling. When maintenance is required, the modular design makes servicing much easier, as individual components can be replaced without changing the entire system. This also creates a wide range of upgrade options for chainrings and arms as riding preferences evolve.
Three-piece designs offer compatibility with various bottom bracket standards, increasing their versatility across different bicycle frames. The separated components allow manufacturers to mix materials for optimal performance/cost balance, using stronger materials where needed while saving weight in less critical areas.
Manufacturing excellence plays a crucial role in three-piece crankset performance. Precision machining ensures perfect alignment between components, while advanced heat-treatment processes enhance durability in high-stress areas. Careful material selection optimizes the strength-to-weight ratio, balancing performance with longevity. Comprehensive quality control measures guarantee consistent performance across production runs, ensuring that each crankset meets exacting standards.
Three-Piece Cranksets: Benefits and Manufacturing Excellence
Benefits:
Improved Durability: Utilizes better materials and construction techniques, resulting in longer-lasting components.
Enhanced Power Transfer: Stiffer connections between components lead to more efficient power transfer during cycling.
Modular Design for Easy Maintenance: Individual components can be serviced or replaced without needing to change the entire system.
Wide Range of Upgrade Options: Allows for customization and upgrades of chainrings and crank arms as riding preferences change.
Compatibility with Various Bottom Bracket Standards: Works with different bicycle frames, increasing versatility.
Material Flexibility: Manufacturers can mix materials to optimize performance and cost, using stronger materials where needed and saving weight in less critical areas.
Manufacturing Excellence:
Precision Machining: Ensures perfect alignment between components for optimal performance.
Careful Material Selection: Optimizes the strength-to-weight ratio, balancing performance and durability.
Comprehensive Quality Control: Guarantees consistent performance across production runs, ensuring each crankset meets high standards.
Innovative Design Techniques: Allows for the creation of lightweight yet strong components, improving overall efficiency and ride quality.

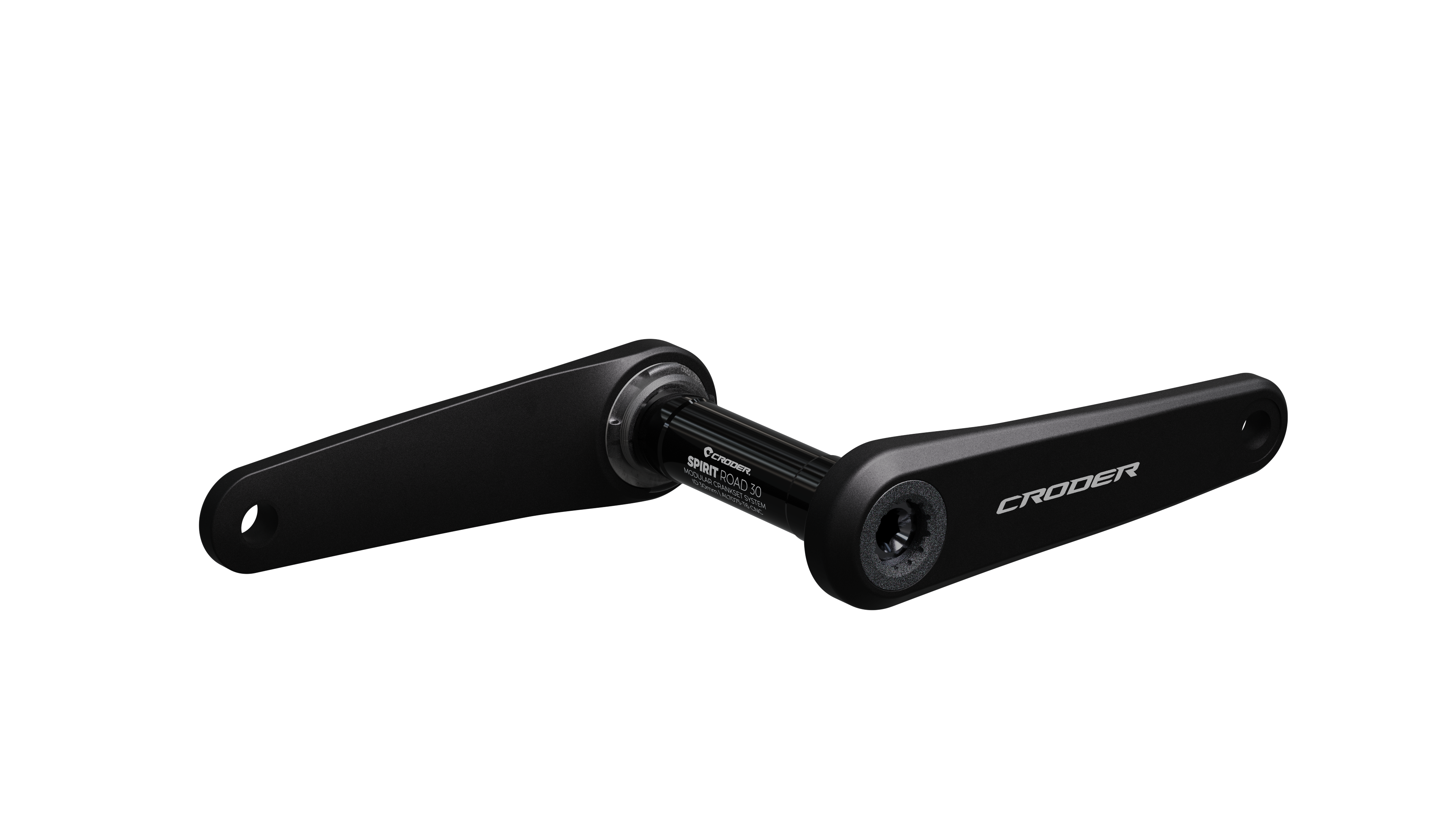

3. Two-Piece Integrated Systems
Modern two-piece integrated cranksets represent the current pinnacle of crankset design.
These systems integrate the drive-side crank arm and spindle into a single unit, with the non-drive side arm attaching separately.
This innovation has revolutionized bicycle performance across all disciplines by addressing the fundamental limitations of earlier designs.
The modern design features of two-piece integrated systems start with the integrated spindle permanently attached to the drive-side arm, creating a unified structure that eliminates potential flex points. External bearings positioned outside the frame increase the effective spindle diameter while improving bearing life through better load distribution.
Hollow construction techniques significantly reduce weight without compromising structural integrity, while oversized spindle diameters increase overall stiffness during power transfer. These systems employ proprietary attachment methods for the non-drive arm that ensure secure connection while facilitating easy maintenance.
The engineering advantages of two-piece integrated systems are substantial and multifaceted. Through advanced material optimization, these cranksets achieve substantially lighter weight compared to traditional designs. The unified structure dramatically increases stiffness during power transmission, eliminating wasted energy that occurs with flexing components.
This translates to superior power transfer efficiency, where more of the rider's effort converts directly to forward motion. As the modern manufacturing standard across performance bicycles, these systems represent the industry's collective knowledge refined through years of development and testing.
The improved design also enhances bearing life through more effective load distribution, reducing maintenance frequency and increasing long-term reliability. Maintenance requirements are reduced through simplified designs with fewer separate components, while the integrated approach allows for more precise chainline adjustment capabilities, optimizing shifting performance across the gear range.
These advanced systems do require consideration of certain technical factors. They typically demand specific bottom bracket standards compatible with their design, limiting frame compatibility. Installation and maintenance often require specialized tools designed for these specific systems, though this investment is justified by improved performance. While manufacturing costs may be higher initially, the performance gains offset this expense for riders seeking optimal efficiency. For premium applications, advanced carbon fiber options provide further weight reduction and vibration damping properties.
Engineering Advantages:
Lightweight Design: Advanced material optimization significantly reduces weight compared to traditional designs.
Increased Stiffness: The unified structure of the drive-side arm and spindle eliminates flex points, enhancing stiffness during power transfer.
Superior Power Transfer Efficiency: Minimizes energy loss from flexing components, ensuring more of the rider's effort converts directly to forward motion.
Improved Bearing Life: External bearings and better load distribution increase bearing durability and reduce maintenance frequency.
Simplified Maintenance: Fewer separate components and proprietary attachment methods make maintenance easier and more efficient.
Precise Chainline Adjustment: Allows for optimized shifting performance across the entire gear range.
Industry Standard: Represents the culmination of years of development and testing, offering the latest in crankset technology.
Technical Considerations:
Compatibility: Requires specific bottom bracket standards, which may limit frame compatibility.
Specialized Tools: Installation and maintenance often require specialized tools designed for these systems.
Higher Manufacturing Costs: Initial costs may be higher, but the performance gains justify the expense for performance-oriented riders.
Advanced Options: Premium applications may include carbon fiber options for further weight reduction and vibration damping, but at a higher cost.
Design Complexity: The integrated design, while efficient, may be more complex to manufacture and service compared to traditional systems.
Chainring Configurations
The number and arrangement of chainrings on a crankset significantly influence a bicycle's performance characteristics, gearing range, and intended use. Modern bicycles feature three primary chainring configurations, each designed to serve specific riding needs and disciplines.

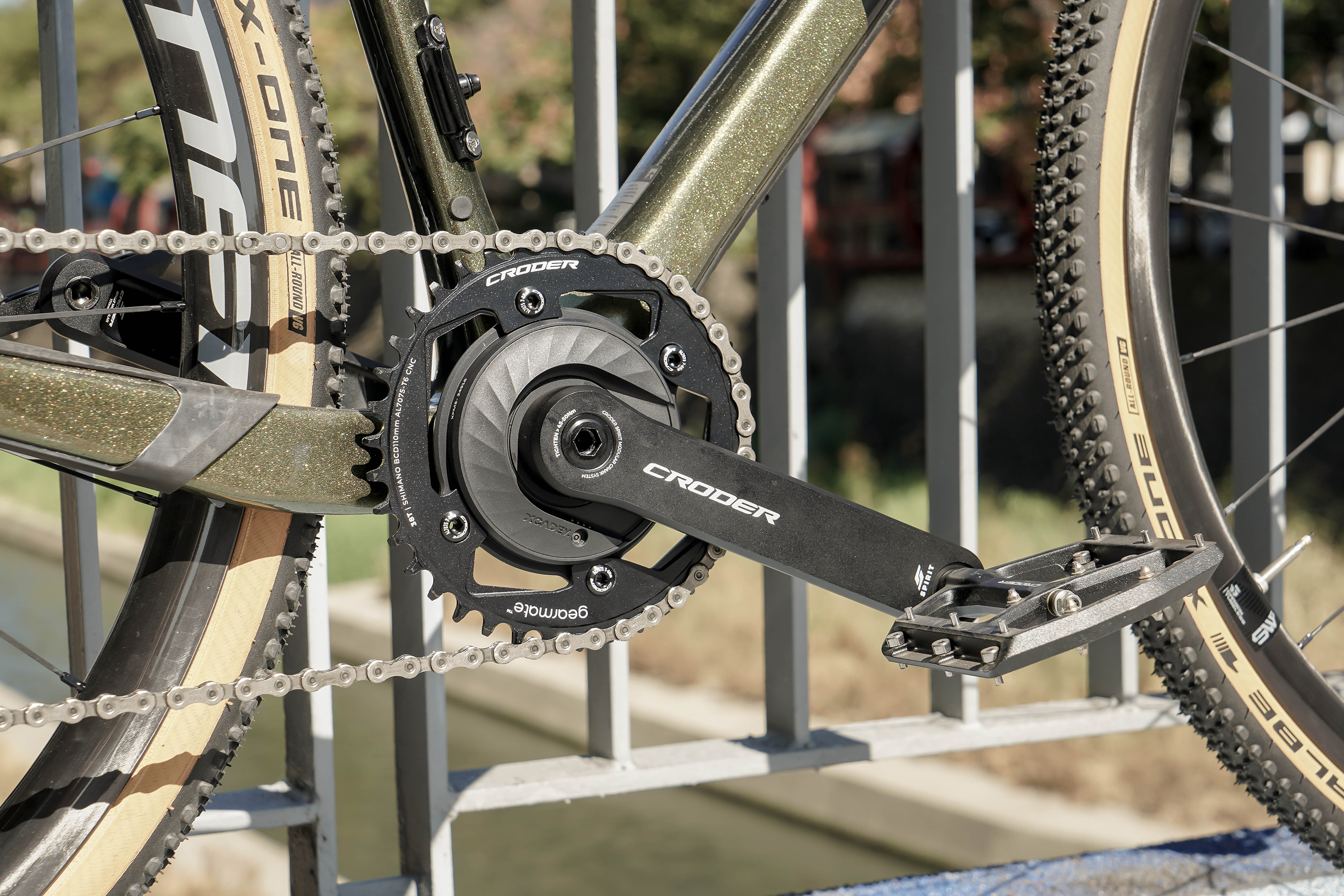

1. Single Ring (1x) Systems

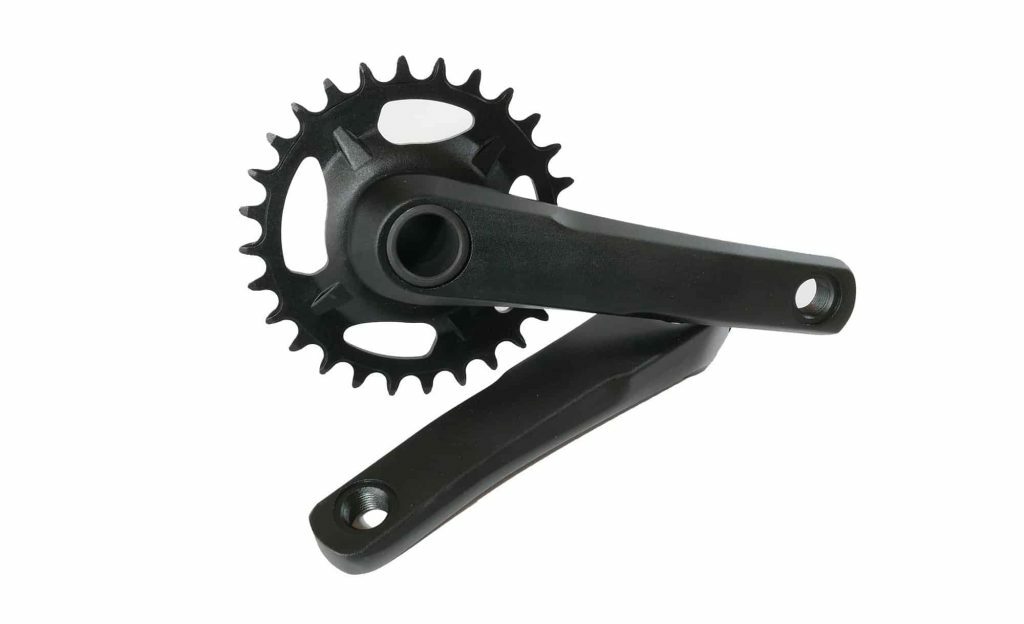

Single ring cranksets, commonly abbreviated as "1x" systems, represent the modern approach to drivetrain simplicity and reliability. These cranksets feature just one chainring at the front, eliminating the front derailleur entirely. This design has revolutionized mountain biking and is increasingly popular in gravel and even some road cycling applications.
The single chainring design offers remarkable mechanical simplicity by removing complex shifting components. Without a front derailleur, the system eliminates multiple potential failure points and reduces maintenance requirements. The streamlined configuration creates a cleaner aesthetic with fewer cables and components cluttering the frame, contributing to the bike's visual appeal and aerodynamic profile.
Modern 1x systems incorporate innovative tooth profiles with alternating narrow and wide teeth that significantly improve chain retention on rough terrain. This technology, combined with clutch-equipped rear derailleurs, virtually eliminates chain drops even in the most challenging conditions. Without the need for multiple chainrings and associated hardware, 1x systems typically weigh less than their multi-ring counterparts, though this advantage may be partially offset by the larger cassette required to maintain gear range.
The versatility of 1x setups makes them ideal for various applications. Mountain bikers appreciate the simplified shifting and improved clearance over technical obstacles. Gravel riders benefit from reliable shifting in dusty conditions and reduced maintenance during long adventures. Even some road cyclists, particularly those focused on criterium racing or flat terrain, have embraced the aerodynamic and weight advantages of 1x systems.
Benefits of Single Ring (1x) Systems
Mechanical Simplicity - Eliminates front derailleur, reduces failure points
Double chainring cranksets remain the standard configuration for road cycling and provide an excellent balance of gear range, shifting precision, and weight. These systems offer three common setups tailored to different riding styles and terrain preferences.
The "standard" double configuration typically features 53/39t chainrings and has long been associated with professional road racing. This setup provides substantial high-end gearing for sprinting and fast descents while still offering adequate low gears for moderate climbs. The relatively large gap between rings ensures distinct performance characteristics between the two gearing ranges.
Compact cranksets with 50/34t chainrings have gained tremendous popularity among recreational and endurance riders. This configuration offers significantly easier climbing gears while sacrificing only a small amount of top-end speed. The compact arrangement is particularly beneficial in hilly terrain and for riders who prioritize comfortable cadence over absolute speed.
Semi-compact or "mid-compact" setups with 52/36t chainrings represent a thoughtful compromise between standard and compact configurations. These cranksets provide nearly the high-end speed of a standard setup with improved climbing capability. The semi-compact arrangement has become increasingly popular among enthusiast road cyclists who encounter varied terrain and want versatile gearing without extreme compromises.
Double chainring systems excel in road cycling applications where efficient cadence management and optimal power output are critical. The relatively small gaps between gears in a 2x system allow riders to maintain an ideal cadence across varying conditions. The configuration provides an expansive overall gear range while minimizing the weight penalty associated with triple setups.
Double Ring (2x) Systems Applications:
Road Cycling - Balances range and efficient cadence management
Endurance Riding - Provides comfortable gearing for long distances
Varied Terrain - Handles both climbs and high-speed sections
Performance Riding - Optimizes weight-to-range ratio
Racing - Offers precise gear steps for maintaining ideal cadence

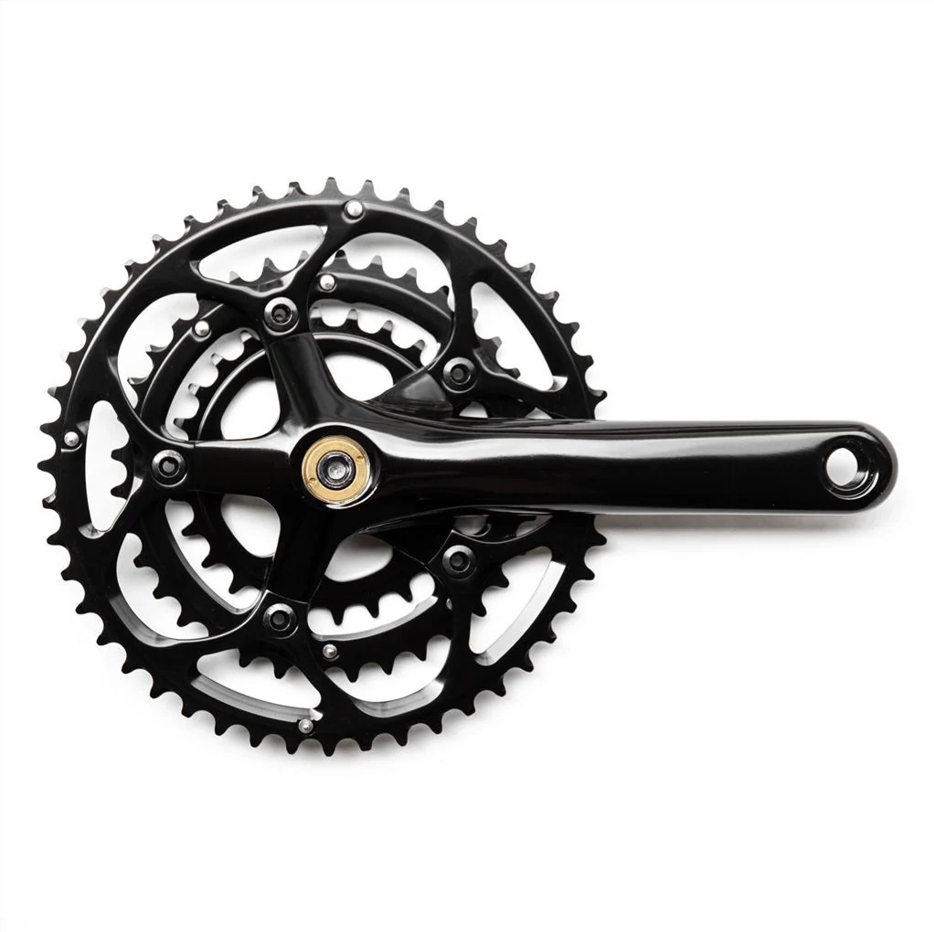

Triple chainring cranksets represent the traditional approach to providing maximum gear range, particularly for loaded touring, recreational riding, and climbing-intensive applications. These systems typically feature three chainrings arranged to provide an expansive gear selection from very easy climbing ratios to respectable cruising speeds.
The traditional triple setup employs three chainrings with tooth counts optimized for diverse riding conditions. Road triples might feature 50/39/30t configurations, while mountain bike triples often use 42/32/22t arrangements. This configuration provides the widest possible gear range in a single drivetrain, enabling comfortable pedaling cadences across extremely varied terrain.
Triple cranksets find their primary applications in several specific cycling niches. Touring cyclists carrying heavy loads appreciate the ultra-low gears for climbing steep grades with panniers. Entry-level recreational bikes often feature triples to accommodate beginners who may not yet have developed cycling-specific strength. While modern mountain bikes have largely transitioned to 1x setups, older mountain bike designs frequently employed triple cranksets to manage technical climbs and varying trail conditions. Many commuter and utility bicycles also benefit from the versatility of triple setups, particularly in hilly urban environments.
Despite their advantages in gear range, triple cranksets have declined in popularity as cassette ranges have expanded and 1x/2x systems have improved. The additional complexity, weight, and maintenance requirements of triple systems have led many cyclists to adopt simpler alternatives that provide comparable gear ranges through wide-range rear cassettes.
Triple Ring (3x) Systems Applications:
Loaded Touring - Ultra-low gears for climbing with heavy panniers
Recreational Riding - Accommodates beginners without developed cycling strength
Older Mountain Bikes - Common on vintage off-road machines
Commuter Bikes - Versatility for hilly urban environments
Utility Cycling - Helps when carrying cargo up inclines
Specialized Functional Crankset Types
Beyond the basic construction types and chainring configurations, modern cranksets can also be categorized by their specialized functions and design philosophies. These functional classifications represent cutting-edge approaches to solving specific cycling challenges or enhancing particular performance aspects. Among these specialized types, two categories have emerged as particularly significant in contemporary cycling: power measurement cranksets and modular customizable systems.
Power Measurement Cranksets
Power measurement cranksets represent one of the most significant technological advancements in cycling equipment over the past decade. These sophisticated components integrate strain gauges and electronic systems directly into the crankset to provide real-time power output data to riders.
Key Features and Benefits:
Accurate Performance Metrics - Provides precise wattage measurement during riding
Training Optimization - Enables structured, data-driven training programs
Performance Tracking - Allows for consistent tracking of fitness gains
Pacing Management - Helps riders maintain optimal effort during events
Efficient Training - Maximizes results from available training time
Bilateral Measurement - Advanced models measure left/right power balance

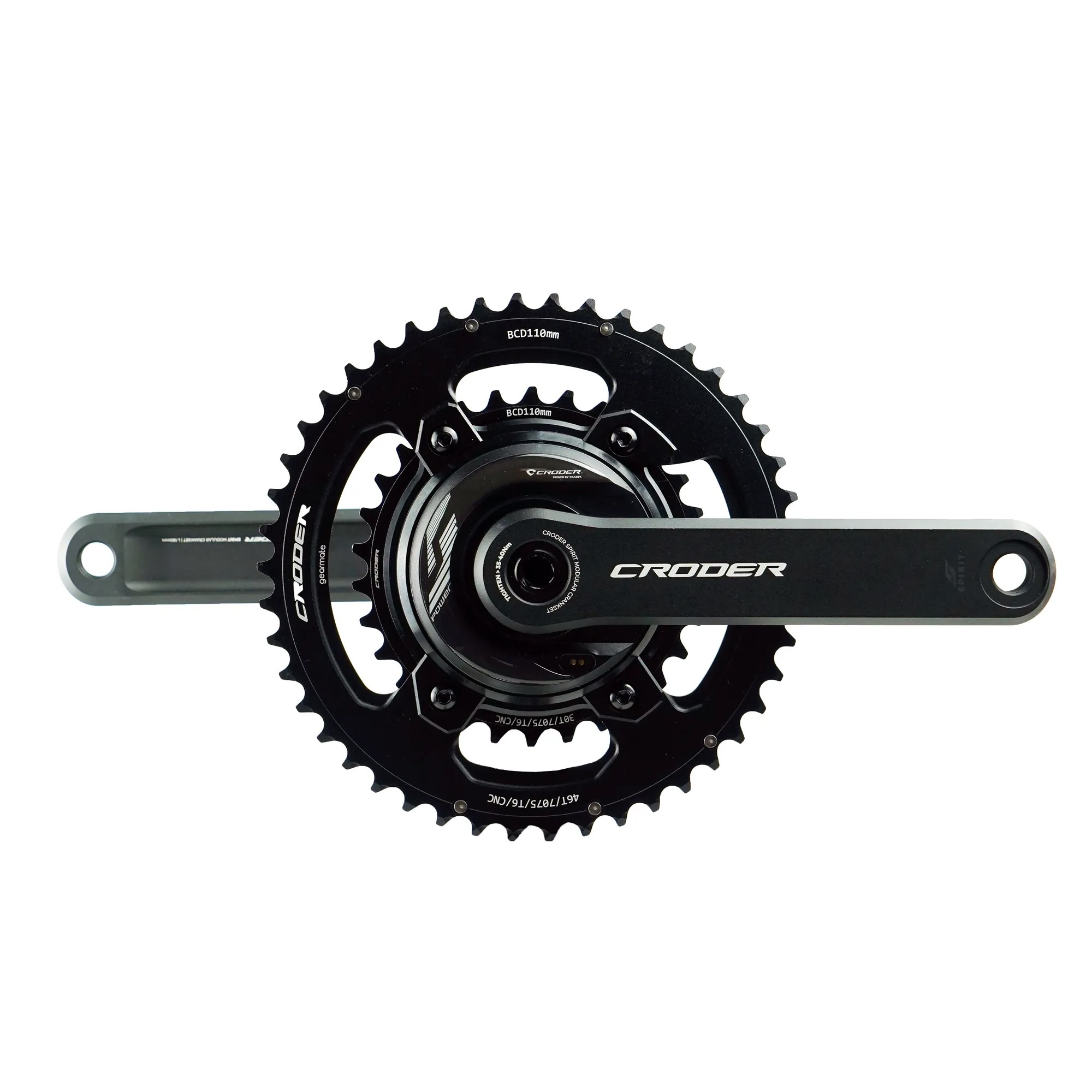

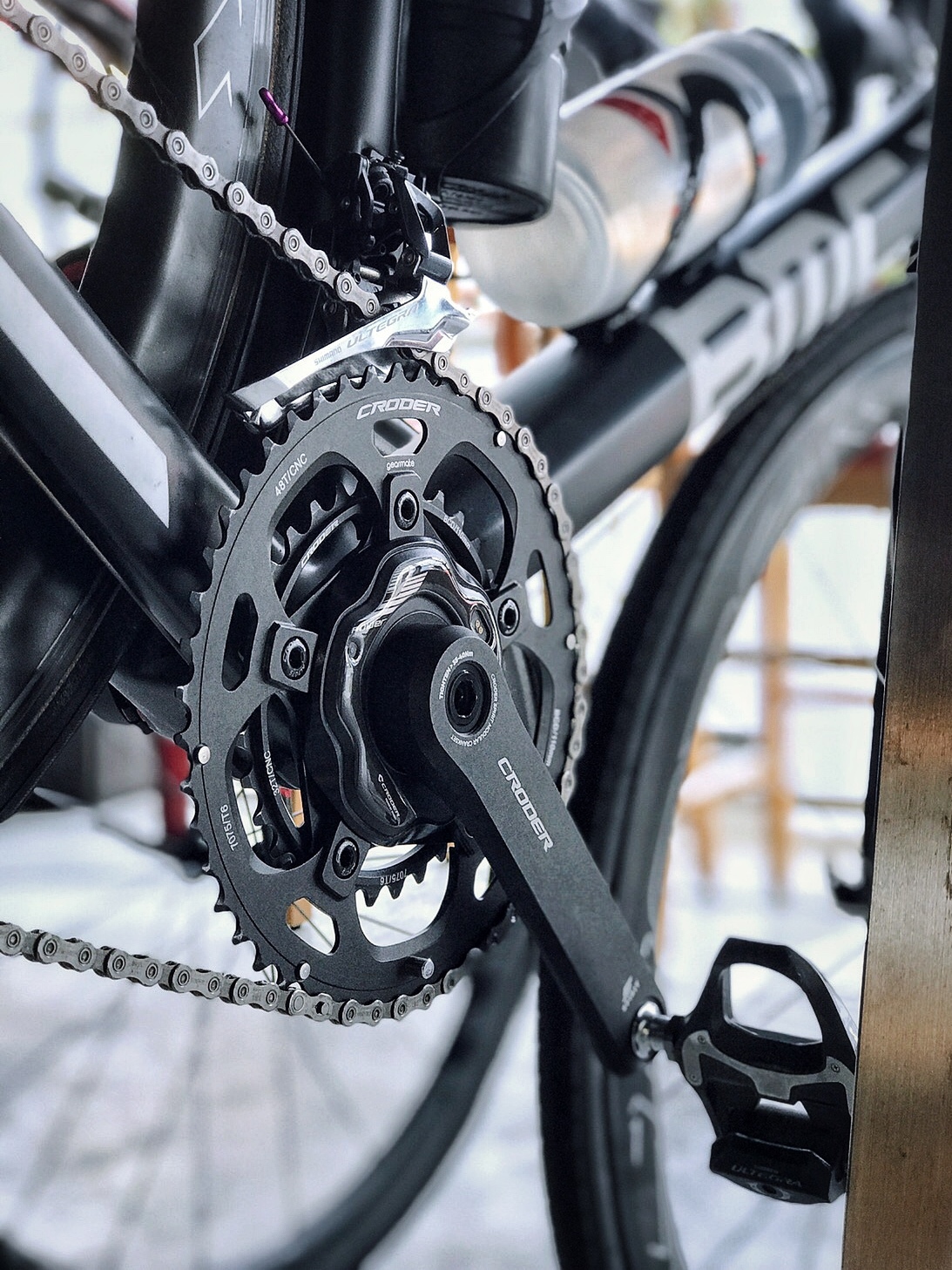

CRODER SPIRIT S-POWER Power Meter Crankset
Recommended Product: SPIRIT S-POWER Power Meter Crankset
CRODER's SPIRIT S-POWER Power Meter Crankset represents a breakthrough in accessible performance measurement technology. This innovative crankset integrates sophisticated power measurement capabilities into a high-performance two-piece design. Compatible with both 5-speed and 12-speed systems, the S-POWER offers remarkable versatility across different bicycle setups.
The engineering team at CRODER designed the S-POWER specifically to serve riders at all experience levels, from beginners just discovering the benefits of power-based training to professionals seeking reliable data for performance optimization. This inclusivity demonstrates CRODER's commitment to democratizing advanced cycling technology.
The S-POWER features multiple chainring configurations, including 46/30T for climbing-focused riders, 48/32T for all-around performance, and 50/34T for those prioritizing speed on flatter terrain. This range of options allows cyclists to select the optimal gearing for their specific riding environment and performance goals without compromising on power measurement accuracy.
What truly distinguishes the S-POWER is its unrivaled accuracy in power measurement. CRODER's proprietary strain gauge technology and advanced calibration algorithms deliver consistent, reliable power data across varying conditions. This precision enables evidence-based training decisions and performance tracking that directly contributes to rider improvement.
The manufacturing quality of the S-POWER reflects CRODER's confidence in their product, with the company guaranteeing a high level of satisfaction. The crankset's construction balances lightweight materials with the structural integrity necessary to maintain accuracy during high-power efforts. Weatherproofing elements protect the sensitive electronics without adding unnecessary bulk, ensuring reliable operation in various environmental conditions.
Modular Customizable Cranksets
Modular customizable cranksets represent an innovative approach to component design that prioritizes adaptability and personalization. Unlike traditional fixed-configuration cranksets, these systems allow riders to customize various aspects of their drivetrain to match specific needs, riding styles, and changing conditions.
Key Features and Benefits:
Personalized Configuration - Adapts to individual biomechanics and preferences
Future-Proof Design - Components can be upgraded individually as needs change
Cross-Discipline Versatility - Can be reconfigured for different riding disciplines
Simplified Inventory - Manufacturers and retailers can stock fewer SKUs
Precision Fit - Allows fine-tuning of dimensions for optimal comfort
Environmental Sustainability - Reduces waste through component-level replacement

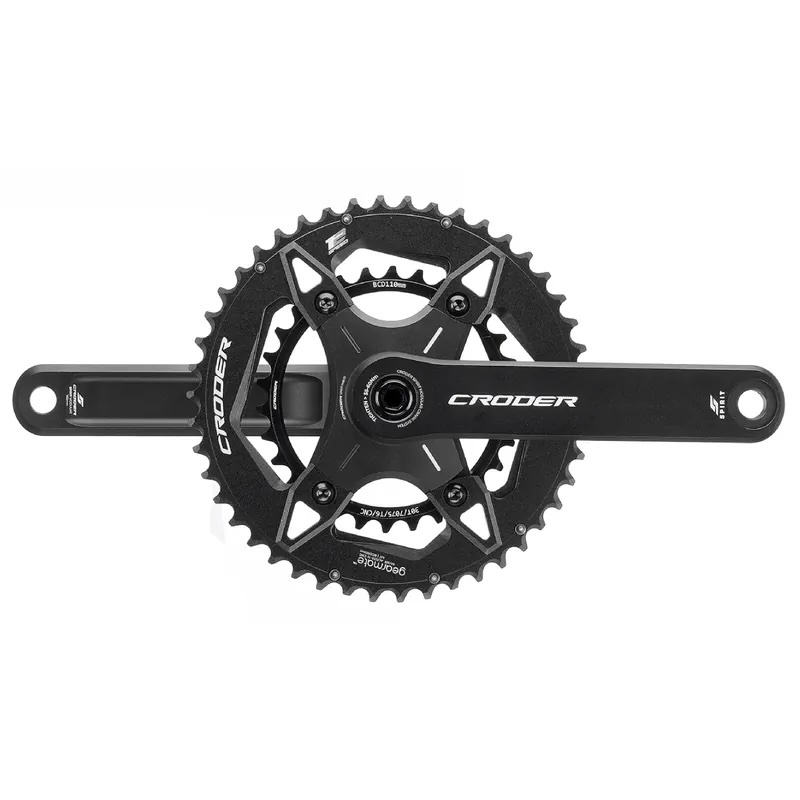

The SPIRIT Modular Crankset exemplifies CRODER's innovative approach to component design. This revolutionary system features a truly modular architecture that allows complete customization according to rider preferences, bike geometry, and intended use. The modular concept extends beyond mere aesthetics, enabling functional adaptation to maximize performance across different cycling disciplines.
The system's design achieves compatibility with diverse bike types and riding styles through thoughtful engineering that accommodates various frame geometries, bottom bracket standards, and drivetrain configurations. Whether mounted on a road racing bike, all-terrain mountain bike, or everyday commuter, the SPIRIT Modular maintains optimal chainline and clearance specifications.
CRODER's precision manufacturing ensures perfect component fit across the entire system. Computer-controlled machining creates components with tolerances measured in micrometers, resulting in connections that eliminate unwanted movement while allowing intended articulation. This manufacturing precision translates directly to improved performance through maximized power transfer and reduced mechanical energy loss.
Understanding that rider physiology varies significantly, CRODER offers the SPIRIT Modular in a comprehensive range of crank lengths from 165mm to 175mm in 2.5mm increments. This granular sizing approach caters to the biomechanical needs of different riders, making it straightforward to select the appropriate setup for optimal pedaling efficiency regardless of rider height, leg length, or flexibility characteristics.
Both CRODER cranksets incorporate advanced technologies that distinguish them in the marketplace. Their pioneering sensory capabilities include proprietary strain measurement systems that provide unprecedented insight into pedaling dynamics. Material specifications achieve the perfect balance of stiffness throughout the entire crankset, eliminating weak points that could compromise performance under load.
CRODER's engineering team has ensured superior compatibility with most contemporary bike frames through comprehensive dimensional analysis and component testing. Their advanced manufacturing processes employ multi-stage quality control protocols that guarantee durability and consistent performance throughout the product lifecycle, from first installation to years of demanding use.
Conclusion
Understanding the diverse landscape of bicycle cranksets is essential for making informed equipment choices that align with your riding objectives and performance needs. As we've explored throughout this guide, cranksets have evolved from simple one-piece designs to sophisticated integrated systems that combine advanced materials, precision engineering, and cutting-edge technology.
The fundamental construction types—one-piece, three-piece, and two-piece integrated systems—each offer distinct advantages for different applications and price points. Similarly, chainring configurations, whether single (1x), double (2x), or triple (3x), provide tailored solutions for specific riding disciplines and terrain challenges. These foundational choices form the basis of a drivetrain system that significantly impacts your cycling experience.
The emergence of specialized functional cranksets, exemplified by CRODER's innovative offerings, represents the continued evolution of bicycle component technology. The SPIRIT S-POWER Power Meter Crankset delivers professional-grade performance metrics in an accessible package, democratizing training technology previously available only to elite athletes. Meanwhile, the SPIRIT Modular Crankset's revolutionary customizable architecture addresses the growing demand for personalized components that adapt to individual biomechanics and changing riding preferences.
When selecting a crankset, consider not only your current riding style but also your long-term cycling aspirations. Evaluate factors such as weight requirements, maintenance preferences, terrain variability, and performance goals. For riders seeking data-driven training advantages, power measurement capabilities offer tremendous value. Those prioritizing adaptability and future-proofing will find modular systems particularly compelling.
Ultimately, the ideal crankset balances technical specifications with practical considerations. CRODER's commitment to precision manufacturing, innovative design, and cross-compatibility demonstrates how modern cranksets can enhance every aspect of the cycling experience—from power transfer efficiency to personalized ergonomics. Whether you're a competitive racer, dedicated enthusiast, or practical commuter, today's crankset options provide unprecedented opportunities to optimize your bicycle's performance for your specific needs.
